| Brand Name: | DLX |
| Model Number: | B 型 MI 热电偶电缆 |
| MOQ: | 500米 |
| Supply Ability: | 每月10万米 |

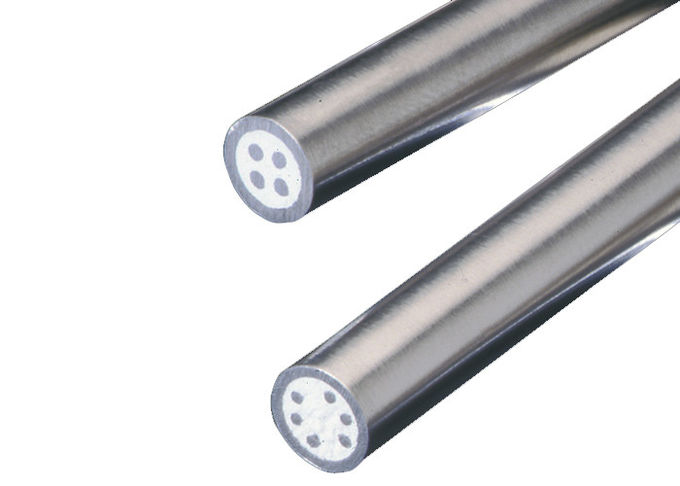

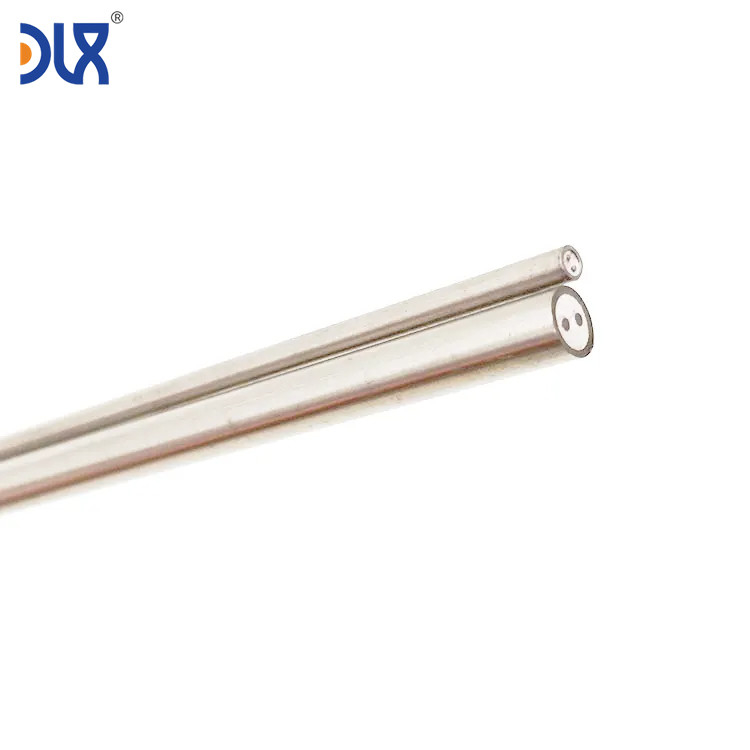

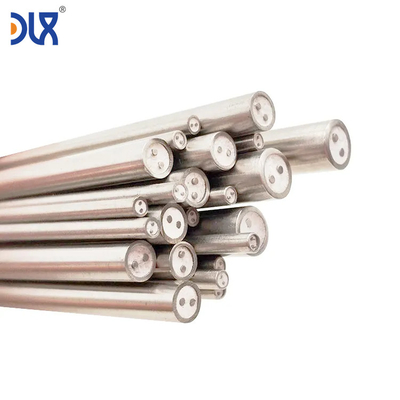

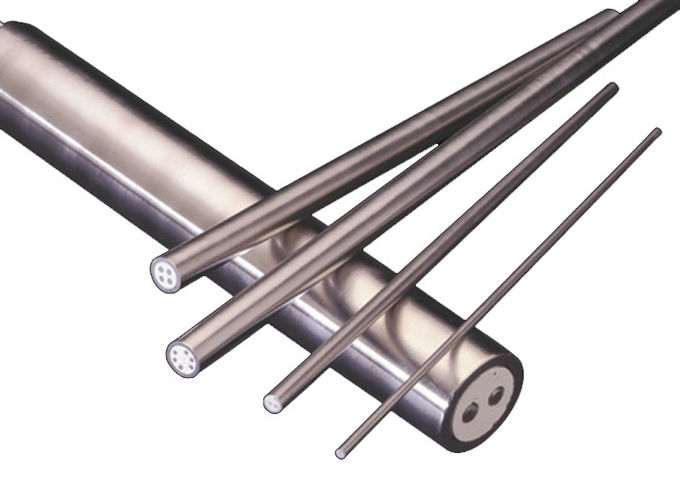

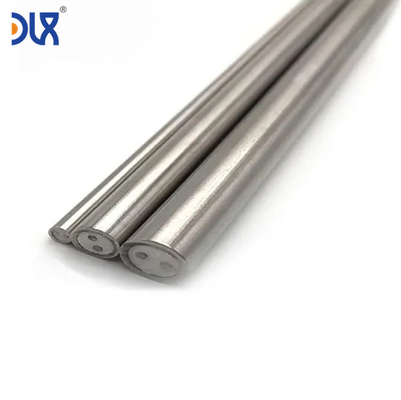

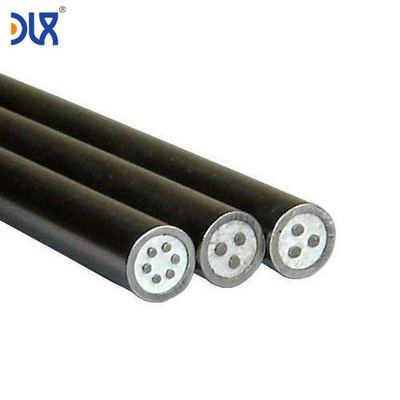

B 型 MI 热电偶电缆
| 外护套(mm) | 芯线直径(mm) | 护套材质 | 长度(米) | |||||
| 我们的直径 | 管壁厚度 | K、N、E、J、T型 | S、R、B类型 | K、N型 | E、J、T型 | S、R型 | B型 | |
| 0.5 | 0.05-0.1 | 0.08-0.12 | --- |
SS304 SS321 SS316 SS310 INCL600 |
SS304 SS321 SS316 |
INCL600 INCL800 |
INCL600 INCL800 |
500 |
| 1 | 0.1-0.2 | 0.15-0.2 | --- | 300 | ||||
| 1.5 | 0.15-0.25 | 0.23-0.3 | --- | 200 | ||||
| 1.6 | 0.16-0.26 | 0.26-0.36 | --- | 200 | ||||
| 2 | 0.25-0.35 | 0.4-0.5 | 0.25-0.3 | 180 | ||||
| 3 | 0.38-0.48 | 0.5-0.6 | 0.30-0.4 | 80 | ||||
| 3.2 | 0.48-0.58 | 0.58-0.68 | 0.30-0.4 | 75 | ||||
| 4 | 0.52-0.62 | 0.6-0.7 | 0.35-0.4 | 70 | ||||
| 4.8 | 0.73-0.83 | 0.75-0.85 | 0.4-0.45 | 40 | ||||
| 5 | 0.78-0.88 | 0.80-0.90 | 0.4-0.45 | 40 | ||||
| 6 | 0.98-1.08 | 0.90-1.1 | 0.45-0.5 | 30 | ||||
| 6.4 | 1.05-1.15 | 1.02-1.12 | 0.45-0.5 | 30 | ||||
| 8 | 1.30-1.44 | 1.30-1.40 | 0.45-0.5 | 20 | ||||
| 12.7 | 1.75-1.90 | 1.92-2.05 | --- | 10 | ||||
| 产品名称 | 代码 | 类型 | 护套材质 | 外径(mm) | 温度 |
| 镍铬镍硅 | KK | K | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| NICROBELL | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1200 | ||||
| 镍铬硅-镍硅 | NK | N | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| NICROBELL | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1200 | ||||
| 镍铬康铜 | EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 铁康铜 | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 1.0-8.0 | 800 | |||
| 铜-康铜 | TK | T | SS304 | -200-100 | |
| SS321 | 100-200 | ||||
| SS316 | 100-350 |
